Product ID:
PROD0053

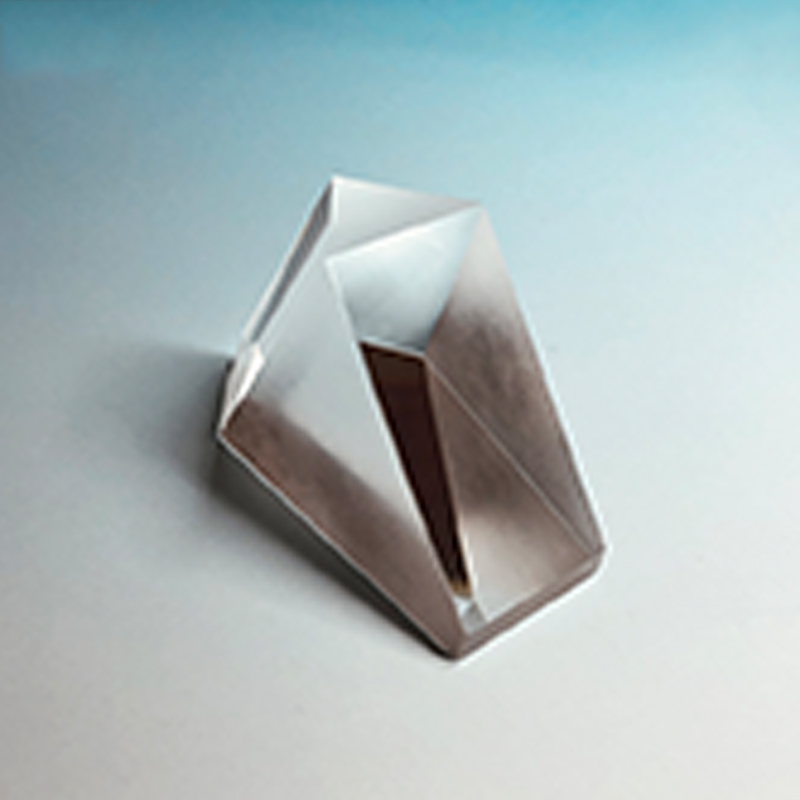

Roof Prism
Used to invert and revert images while bending the line of sight by 90°. Includes Schmidt and Pentagonal roof types.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Type | Schmidt, Pentagonal roof prisms |
|---|---|
| Application | Binoculars, telescopes, microscopes |
| Deviation | 90° |
Product Description
Used to invert and revert images while bending the line of sight by 90°. Includes Schmidt and Pentagonal roof types.
