Product ID:
PROD0052

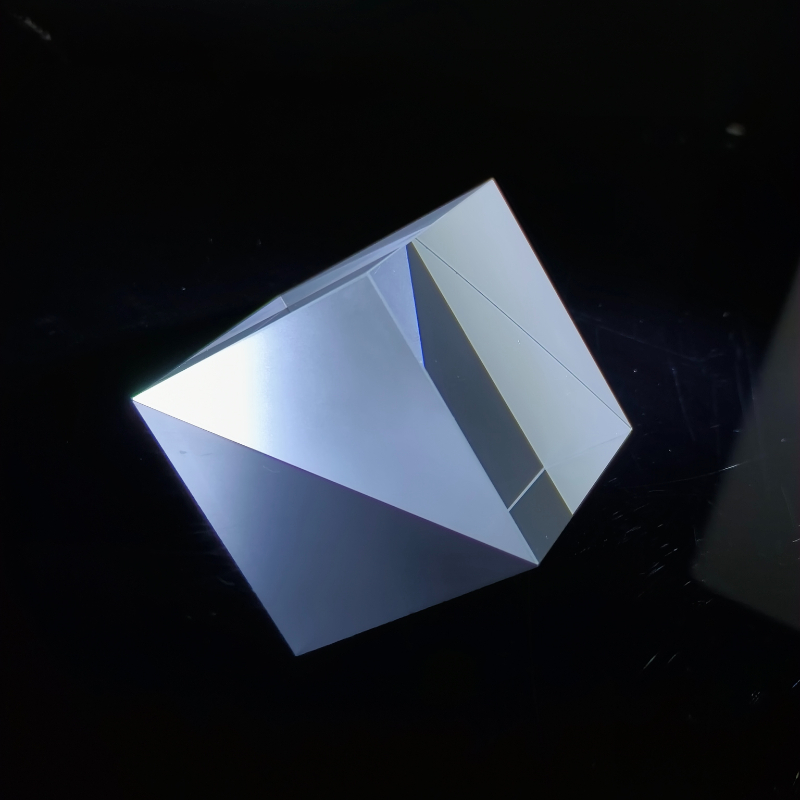

Right Angle Prism
Deflects beams by 90° or 180°. Used for reflection, rotation, and wavelength dispersion.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Material | N-BK7, UVFS, Sapphire |
|---|---|
| Dimension Tolerance | +0.0/-0.1mm |
| Angle Tolerance | < 30 arc sec |
| Surface Quality | 40/20 |
Product Description
Deflects beams by 90° or 180°. Used for reflection, rotation, and wavelength dispersion.
