Product ID:
PROD0018

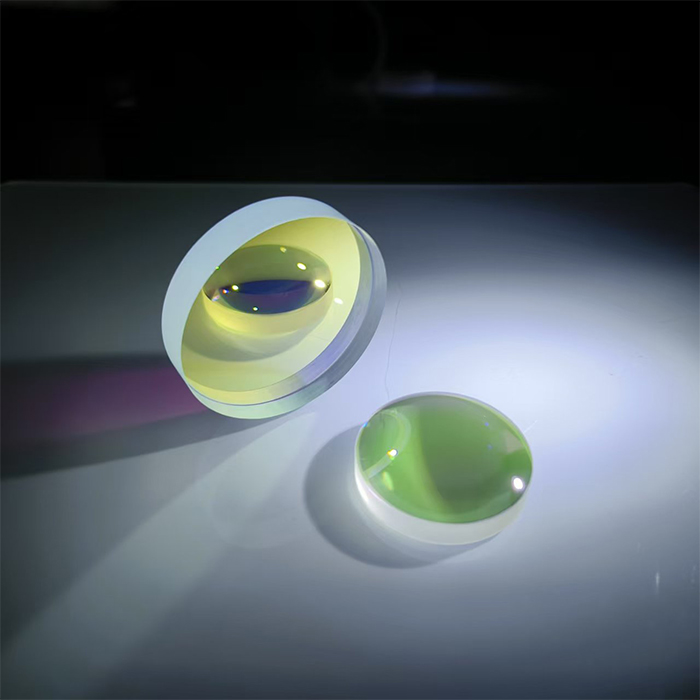

Plano-Convex Lens
Used for collimating divergent light or focusing collimated light.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Structure | Plano-Convex Lens |
|---|---|
| Material | Optical Glass, UVFS, Ge, Silicon, CaF2, MgF2, ZnSe, ZnS, Sapphire |
| Available Diameter | 0.1mm to 600mm |
| Diameter Tolerance | +0.00/-0.02mm or customer design |
| Surface Quality | 10-5 |
| Surface Irregularity | λ/10 @ 632.8nm or customer design |
| Thickness Tolerance | +0/-0.02mm |
| Clear Aperture | > 90% of diameter |
| Centering | 3 arc min |
| Coating | Single MgF2, Multi-layer AR coating |
| Effective Focal Length | Range from 3 to 500mm (SD1A series) |
Product Description
Used for collimating divergent light or focusing collimated light.
