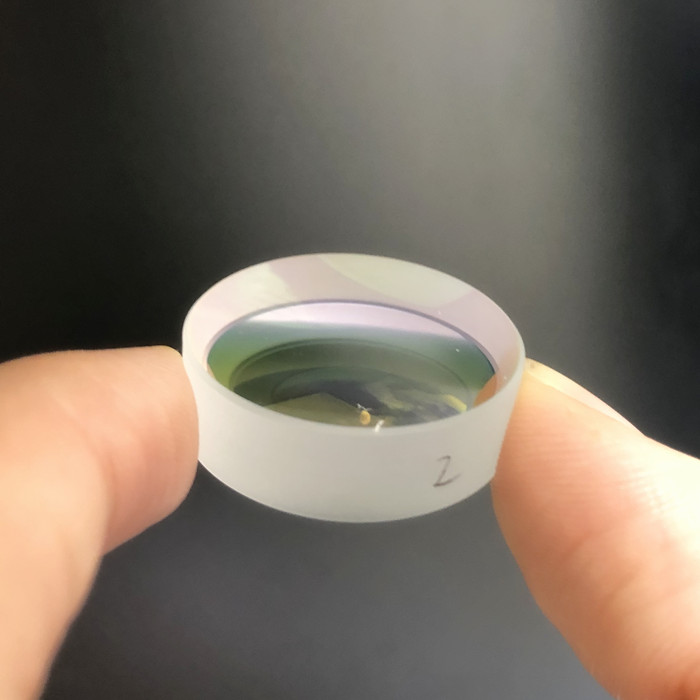

Plano-Concave Lens
Mainly used for infinite conjugate applications, laser applications, and imaging systems. Features one flat and one concave surface.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Structure | Plano-Concave Lens |
|---|---|
| Material | Optical Glass, UVFS, Ge, Silicon, CaF2, MgF2, ZnSe, ZnS, Sapphire |
| Available Diameter | 0.5mm to 600mm |
| Diameter Tolerance | +0.00/-0.01mm or customer design |
| Surface Quality | 10-5 |
| Surface Irregularity | λ/10 PV @ 632.8nm or customer design |
| Thickness Tolerance | +0/-0.01mm |
| Clear Aperture | > 90% of diameter |
| Chamfer | 0.05-0.5mm × 45° |
| Coating | Single MgF2, Multi-layer AR coating |
| Effective Focal Length | Range from -10 to -500mm (SD3A series) |
Product Description
Mainly used for infinite conjugate applications, laser applications, and imaging systems. Features one flat and one concave surface.
