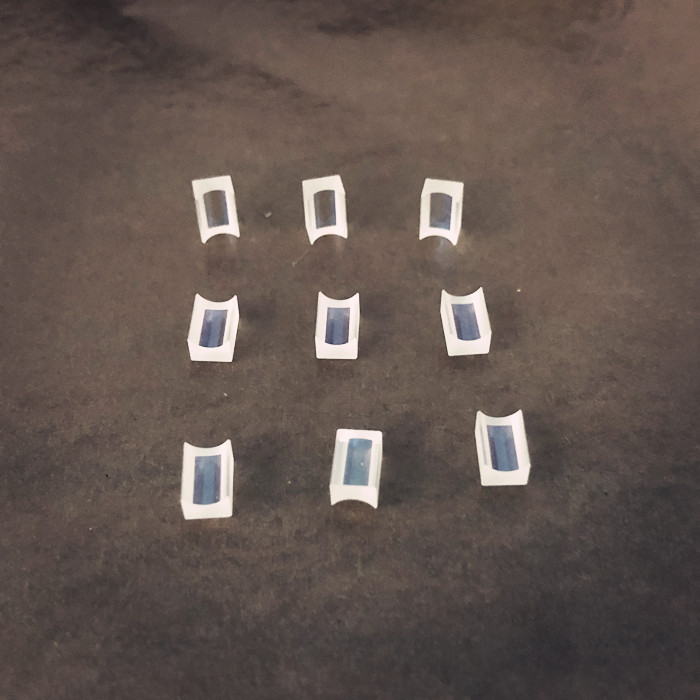

Plano-Concave Cylindrical Lens
Used as magnifiers, objectives, and condensing systems. Coated versions also available.
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.com| Structure | Plano-Concave Cylindrical Lens |
|---|---|
| Material | Optical Glass, UVFS, Ge, Silicon, CaF2, MgF2, ZnSe, ZnS, Sapphire |
| Size Range | 2mm to 600mm |
| Surface Quality | 20-10 |
| Surface Irregularity | λ/4 @ 632.8nm |
| Coating | Single MgF2, Multi-layer AR |
Product Description
Used as magnifiers, objectives, and condensing systems. Coated versions also available.
