Product ID:
PROD0049

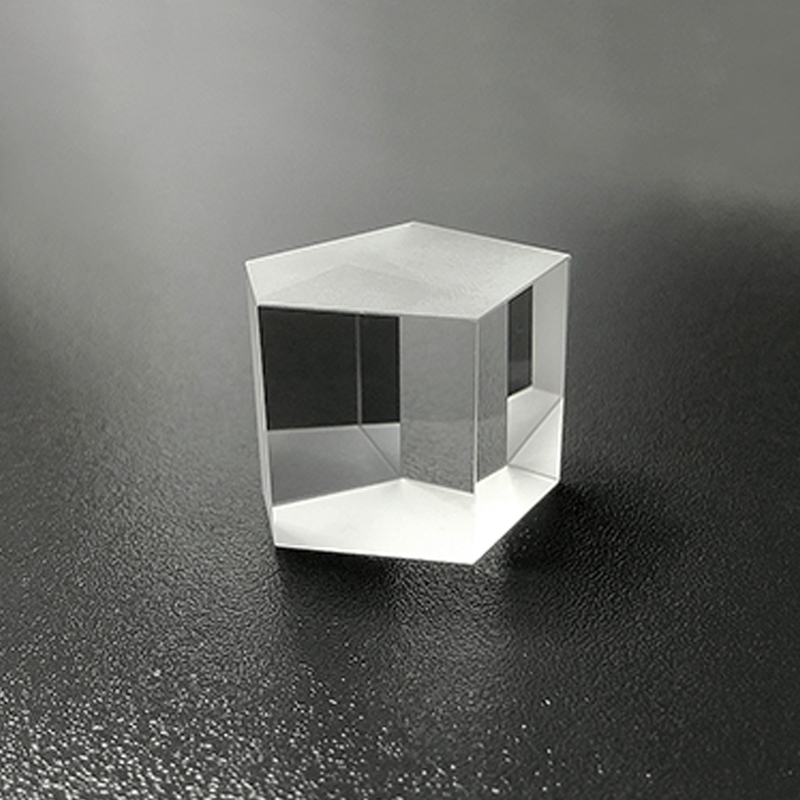

Pentagonal Prism
Widely used in laser levels and imaging. Deviates light by 90° regardless of prism orientation.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Deviation | 90° |
|---|---|
| Deviation Tolerance | < 10 arc sec |
| Surface Quality | 20/10 |
| Application | Laser levels, imaging, periscopes |
Product Description
Widely used in laser levels and imaging. Deviates light by 90° regardless of prism orientation.
