Product ID:
PROD0016

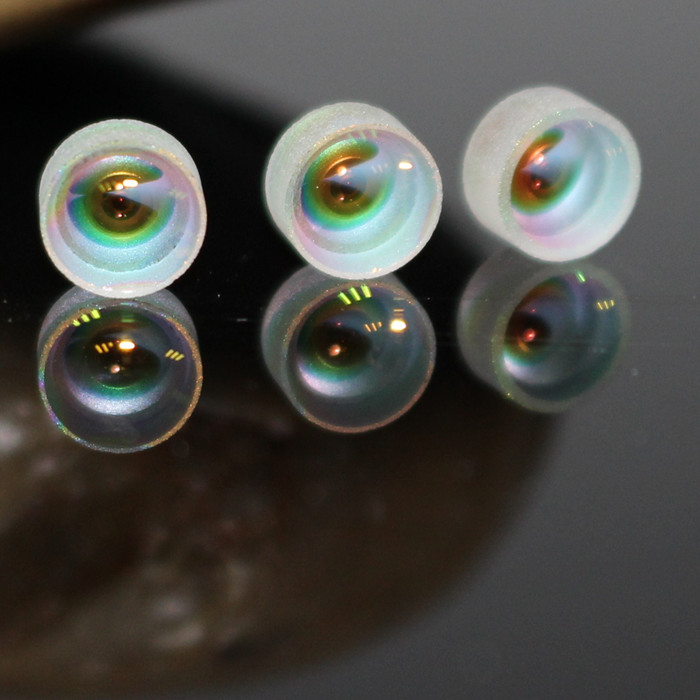

Micro Spherical Lens
Produces micro lenses with a minimum diameter of 0.1mm made from optical glass substrates.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Structure | Micro Lens |
|---|---|
| Material | Optical Glass, UVFS, Ge, Silicon, CaF2, MgF2, ZnSe, ZnS, Sapphire |
| Available Diameter | Available from 0.1mm |
| Diameter Tolerance | +0.00/-0.02mm or customer design |
| Surface Quality | 10-5 |
| Surface Irregularity | λ/10 @ 632.8nm or customer design |
| Thickness Tolerance | +0/-0.02mm |
| Clear Aperture | > 90% of diameter |
| Centering | 3 arc min |
| Coating | Single MgF2, Multi-layer AR coating |
Product Description
Produces micro lenses with a minimum diameter of 0.1mm made from optical glass substrates.
