Product ID:
PROD0023

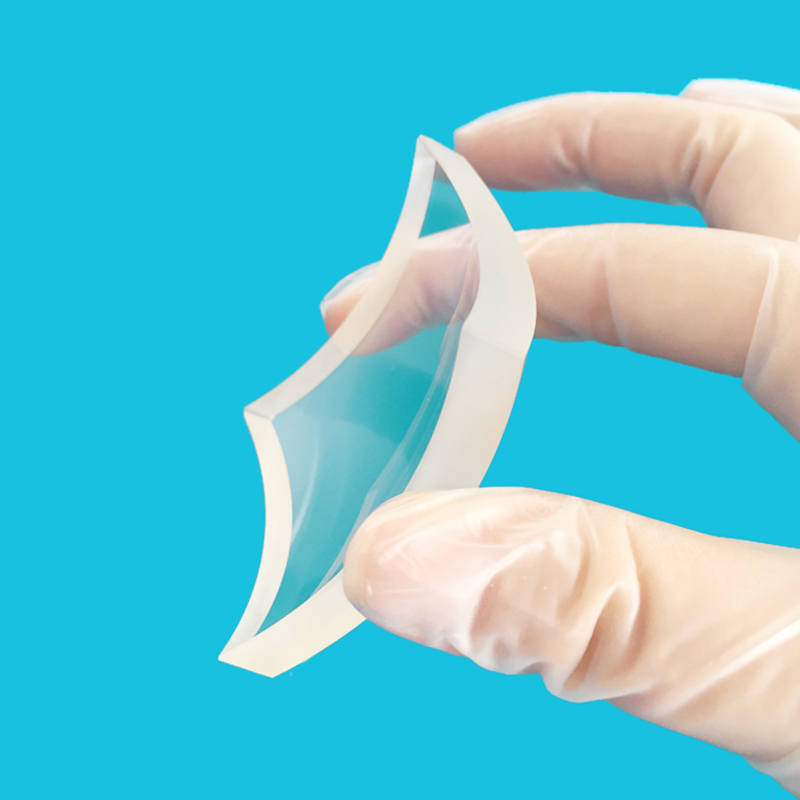

Meniscus Cylindrical Lens
A cylindrical lens with one convex surface and one concave surface.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Structure | Meniscus Cylindrical Lens |
|---|---|
| Material | Optical Glass, UVFS, Ge, Silicon, CaF2, MgF2, ZnSe, ZnS, Sapphire |
| Size Range | 2mm to 400mm |
| Surface Quality | 40/20 |
| Coating | AR coating upon request |
Product Description
A cylindrical lens with one convex surface and one concave surface.
