Product ID:
PROD0013

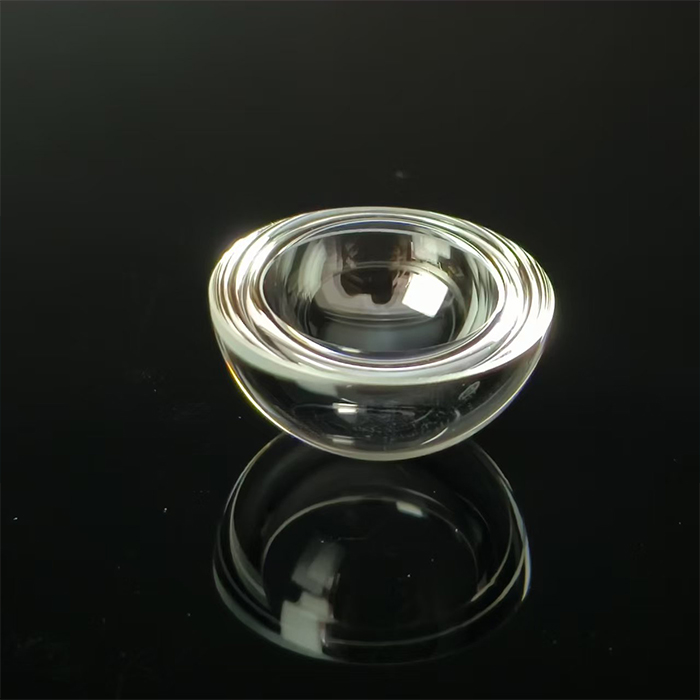

Hemispherical Lens / Dome Lens
Optical domes are lenses with two concentric spheres. Concentricity is critical. Widely used for detectors and optical sensors.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Material | H-K9L, JGS1, Sapphire, Silicon |
|---|---|
| Available Diameter | 3–400mm |
| Diameter Tolerance | +0.00/-0.05mm or customer design |
| Surface Quality | 10-5 |
| Surface Irregularity | λ/4 @ 632.8nm or customer design |
| Thickness Tolerance | +/-0.05mm |
| Clear Aperture | > 90% of diameter |
| Chamfer | 0.05-0.5mm × 45° |
| Coating | BBAR 400-700nm |
Product Description
Optical domes are lenses with two concentric spheres. Concentricity is critical. Widely used for detectors and optical sensors.
