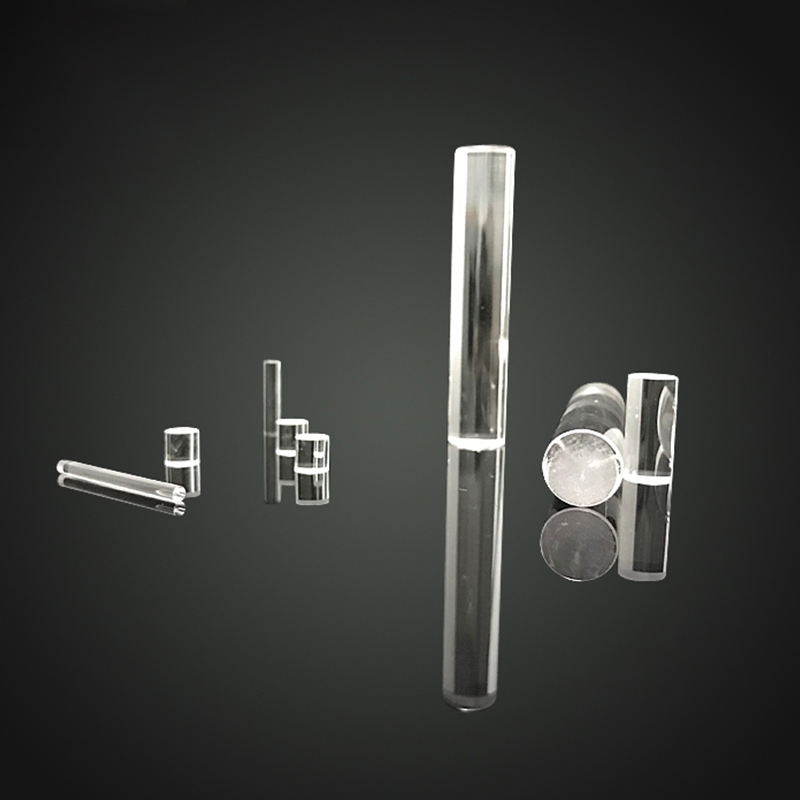

Cylindrical Rod Lens
Mainly used for sensors, light guides, endoscopes, and laser systems. Polishing is available for end faces or cylindrical surfaces.
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.com| Structure | Rod Lens |
|---|---|
| Material | Optical Glass, UVFS, Ge, Silicon, CaF2, MgF2, ZnSe, ZnS, Sapphire |
| Diameter | 0.5mm to 100mm |
| Diameter Tolerance | +0.00/-0.02mm or customer design |
| Surface Quality | 20-10 |
| Surface Irregularity | λ/4 @ 632.8nm or customer design |
| Length Tolerance | +0/-0.1mm |
| Clear Aperture | > 90% of diameter |
| Coating | Single MgF2, Multi-layer AR coating |
Product Description
Mainly used for sensors, light guides, endoscopes, and laser systems. Polishing is available for end faces or cylindrical surfaces.
