Product ID:
PROD0011

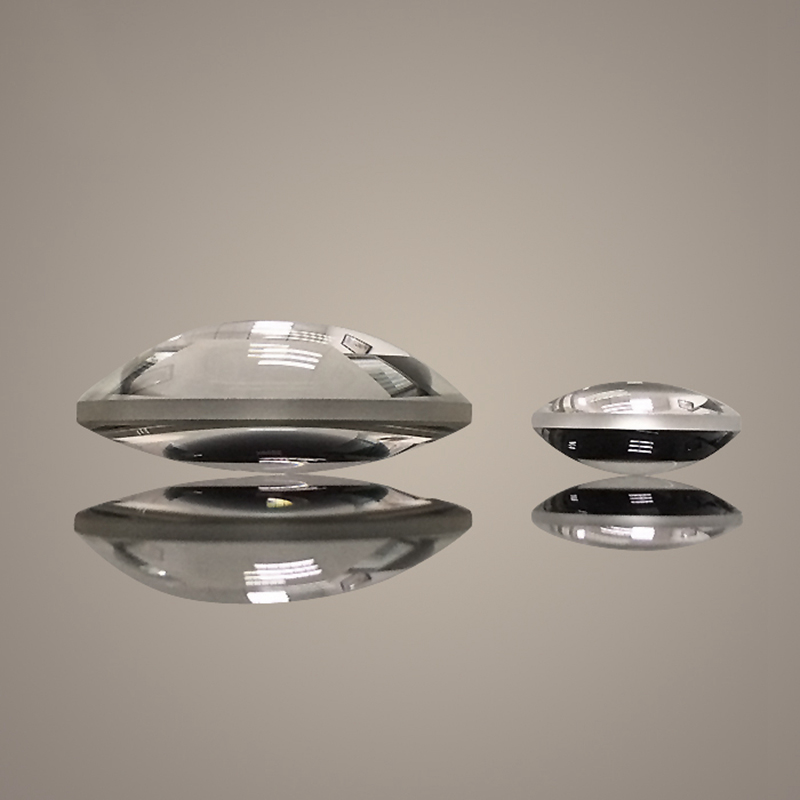

Biconvex Lens
Biconvex lenses have two convex surfaces and are used for magnification, optical, and laser systems.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Structure | Biconvex Lens |
|---|---|
| Material | Optical Glass, UVFS, Ge, Silicon, CaF2, MgF2, ZnSe, ZnS, Sapphire |
| Available Diameter | 0.3mm to 600mm |
| Diameter Tolerance | +0.00/-0.01mm or customer design |
| Surface Quality | 10-5 |
| Surface Irregularity | λ/10 PV @ 632.8nm or customer design |
| Thickness Tolerance | +0/-0.01mm |
| Clear Aperture | > 90% of diameter |
| Chamfer | 0.05-0.5mm × 45° |
| Coating | Single MgF2, Multi-layer AR coating |
| Effective Focal Length | Range from 50 to 500mm (SD2A series) |
Product Description
Biconvex lenses have two convex surfaces and are used for magnification, optical, and laser systems.
