Product ID:
PROD0022

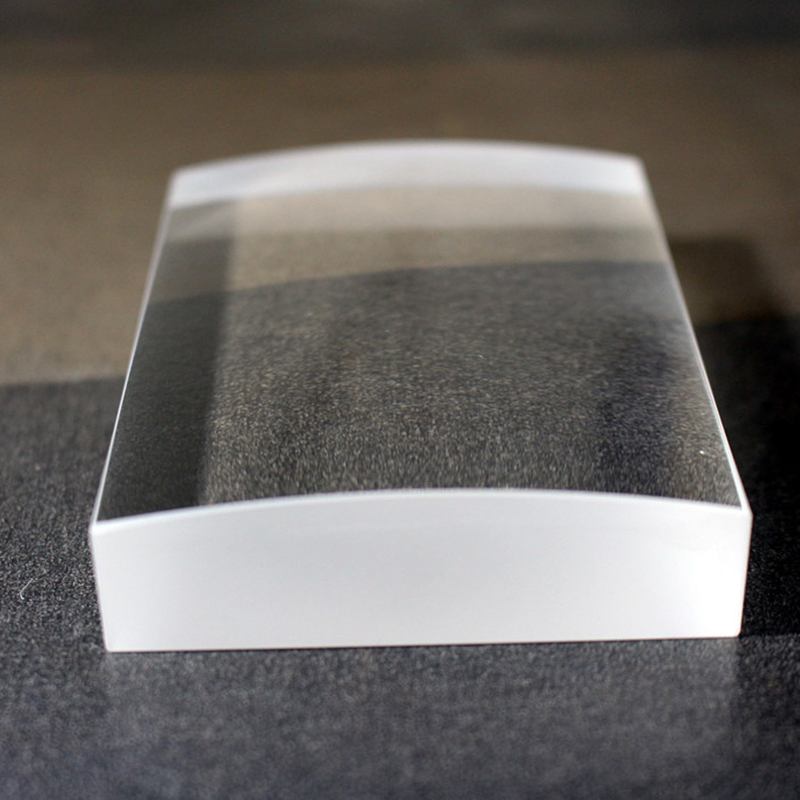

Biconvex Cylindrical Lens
Used for optical systems, scanners, and laser systems. Available in round, square, or rectangular shapes.
Custom Sizes Available
ISO 9001 Certified
Fast Delivery
Quality Guaranteed
Need Help?
Contact our sales team for specifications, customization, and quotes.
info@novacomponent.comTechnical Specifications
| Structure | Biconvex Cylindrical Lens |
|---|---|
| Material | Optical Glass, UVFS, Ge, Silicon, CaF2, MgF2, ZnSe, ZnS, Sapphire |
| Available Size | 2mm to 600mm |
| Size Tolerance | +0.00/-0.02mm or customer design |
| Surface Quality | 20-10 |
| Surface Irregularity | λ/4 @ 632.8nm or customer design |
| Thickness Tolerance | +0/-0.02mm |
| Clear Aperture | > 90% of size |
| Centering | 3 arc min |
| Coating | Single MgF2, Multi-layer AR coating |
Product Description
Used for optical systems, scanners, and laser systems. Available in round, square, or rectangular shapes.
